Build guide
Print prep, assembly, crossover wiring and final checks.
What happens after checkout
-
Step 1
Start printing
Files are available immediately while your kit ships.
-
Step 2
Follow the guide
Print, solder, assemble and set up the pair step by step.
-
Step 3
Listen to your build
Connect them to a normal amp and enjoy speakers you built yourself.
Full guides included
Print, build, wiring and setup
SB Acoustics drivers
4-inch woofer and 19 mm tweeter
Email support
Help if you get stuck
Worldwide shipping
Included with every kit
The project
Build real bookshelf speakers
A compact passive speaker kit for 3D printer owners who want a proper hi-fi build without woodworking.
- Build type
- Passive 2-way bookshelf speaker pair
- Best for
- Desktops, bookshelves, small rooms, surrounds, or pairing with a subwoofer
- Skill level
- Beginner friendly
- End result
- A finished stereo pair for a normal amplifier
Print the cabinets, build the crossover, install the parts and follow the setup guide.
Fit check
Is this the right kit for you?
Check the build size, skill level and intended use before you start.
Skill level
Beginner
Printing, soldering and careful assembly.
Printer size
W 160 x D 250 x H 210 mm
Minimum printer build volume.
Print time
1-2 days per speaker
Typical print duration for each speaker.
Build time
Around two afternoons
Hands-on assembly after printing.
Printing
Easy
Designed for normal FDM printing in PLA.
Soldering
Beginner-friendly
A simple first soldering project with clear wiring instructions.
Want to see the process first? See the full build guide.
Use case
Where this kit makes sense
A quick check before you choose.
Best for
- Desktops
- Bookshelves
- Small rooms
- Surrounds
- Pairing with a subwoofer
Probably not for
- Huge rooms without a subwoofer
- Plug-and-play buyers
- Tool-free builds
Soldering
Required
No advanced electronics experience needed. The guide shows the crossover and wiring step by step.
Finishing
Optional
Painting or surface finishing is optional.

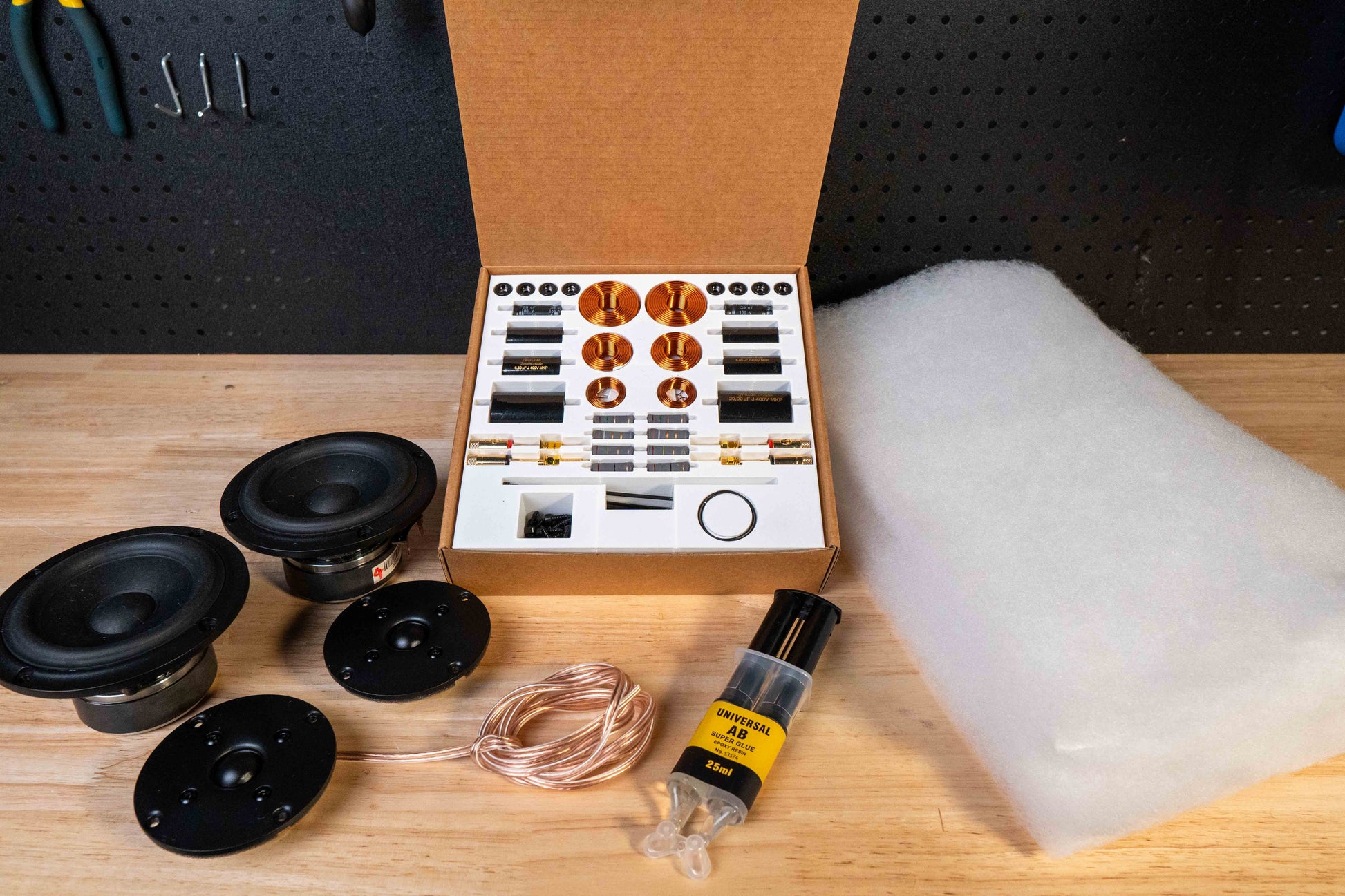

Kit contents
What you get and what you bring
The kit supplies the speaker parts, files and guides. You supply the printer, filament, tools and amplifier.
Included
Included in the kit
The files, parts and hardware supplied with this kit.
Files and guides
STL files, STEP files, build guide, setup guide
Speaker parts
Woofers, tweeters, crossover components, internal wiring
Hardware
Screws, feet, binding posts, wire, damping material
Supply yourself
You'll need to supply
The printer, materials, tools and audio gear you bring to the build.
Printer and material
Reliable FDM printer, 3.8-4 kg PLA per pair
Basic tools
Soldering iron, solder, hot glue gun, clamps, Allen keys, pliers
Audio gear
Stereo amplifier, speaker cable
Build path
How the project comes together
Print the parts, build the crossover, install the drivers, glue the cabinet and connect to an amp.
Step 1
Print the parts
Use the included files and print notes.
Step 2
Build the crossover
Assemble the passive crossover with the guide.
Step 3
Install the parts
Fit the drivers, binding posts, damping and hardware.
Step 4
Glue and finish
Glue the cabinet, clamp it and finish the surface if you want.
Step 5
Connect and listen
Connect to your amplifier and follow the setup guide.
Guides
See the full guides before you build
Read the build, spec and setup guides before you start printing.

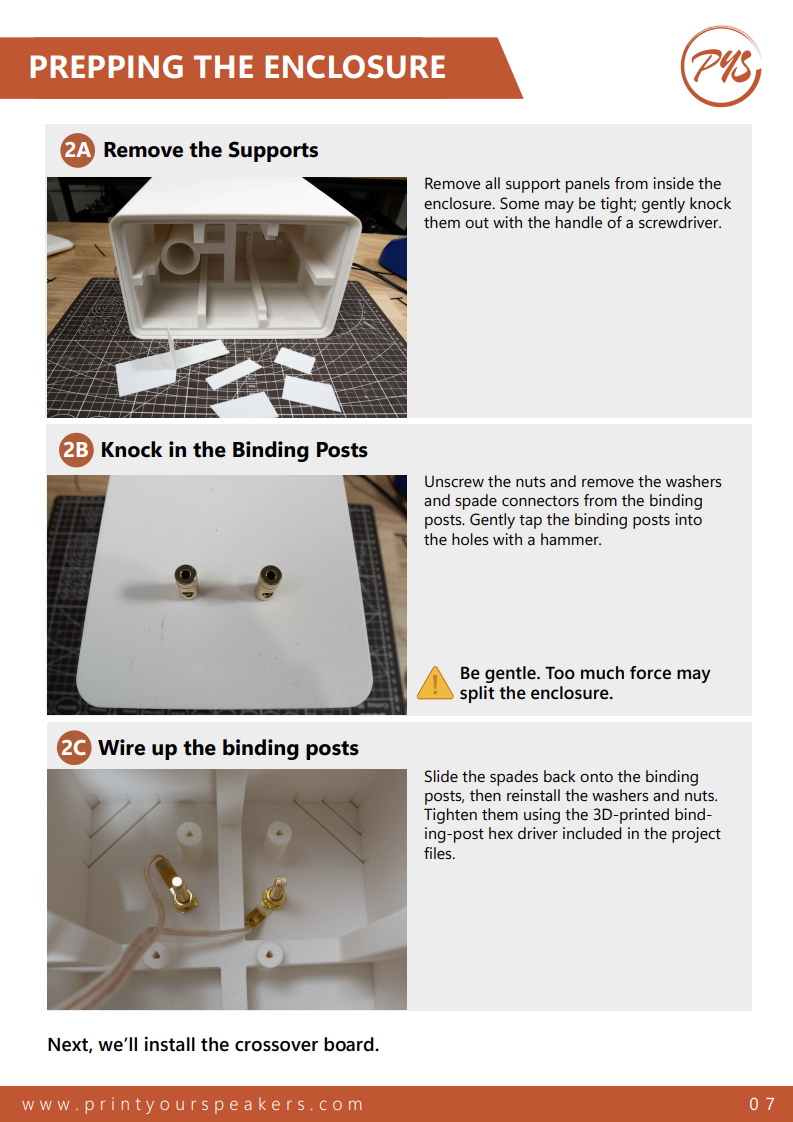

Build guide Static guide image. Open the PDF for the full document. See the full build guide
Spec sheet
Dimensions, drivers, impedance, response and measurement notes.
Setup guide
Placement basics for better sound after the build.
Sound
Why the design works
The drivers, cabinet and crossover are designed to work together, then checked with measurements.
1
2
4
1

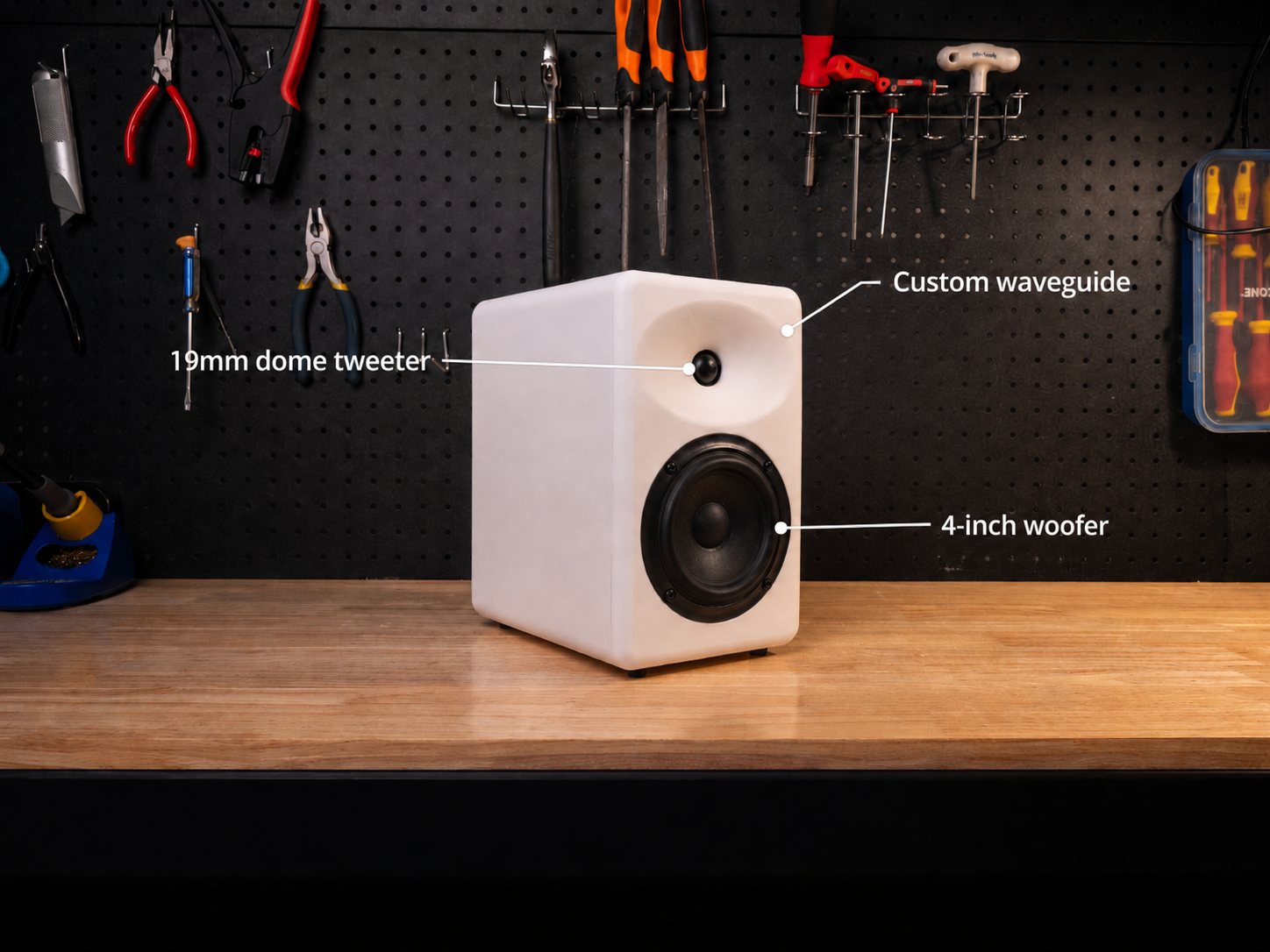

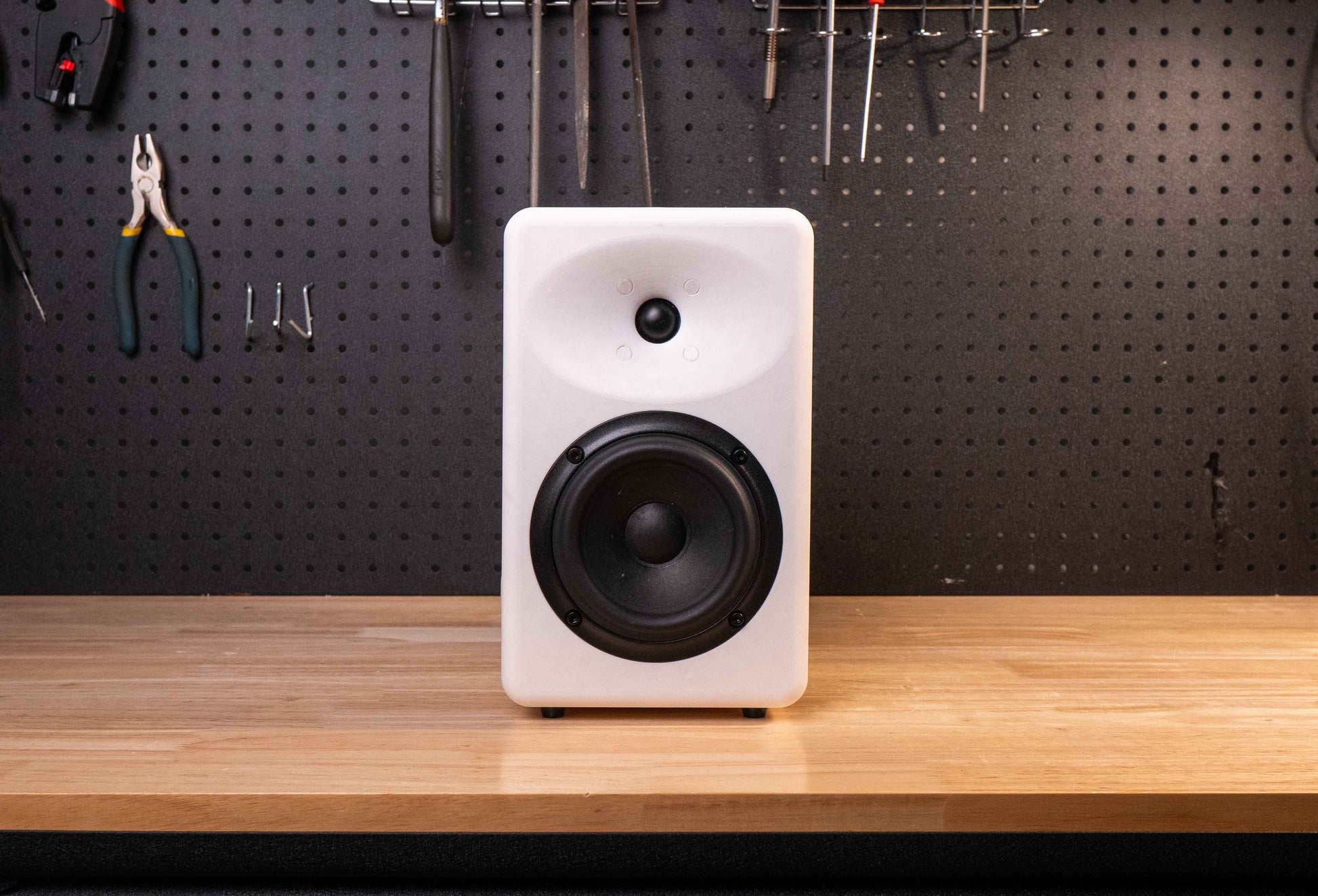

Custom waveguide
Helps the tweeter spread sound smoothly into the room.
2
4-inch woofer
Keeps the cabinet compact while still giving useful bass.
3

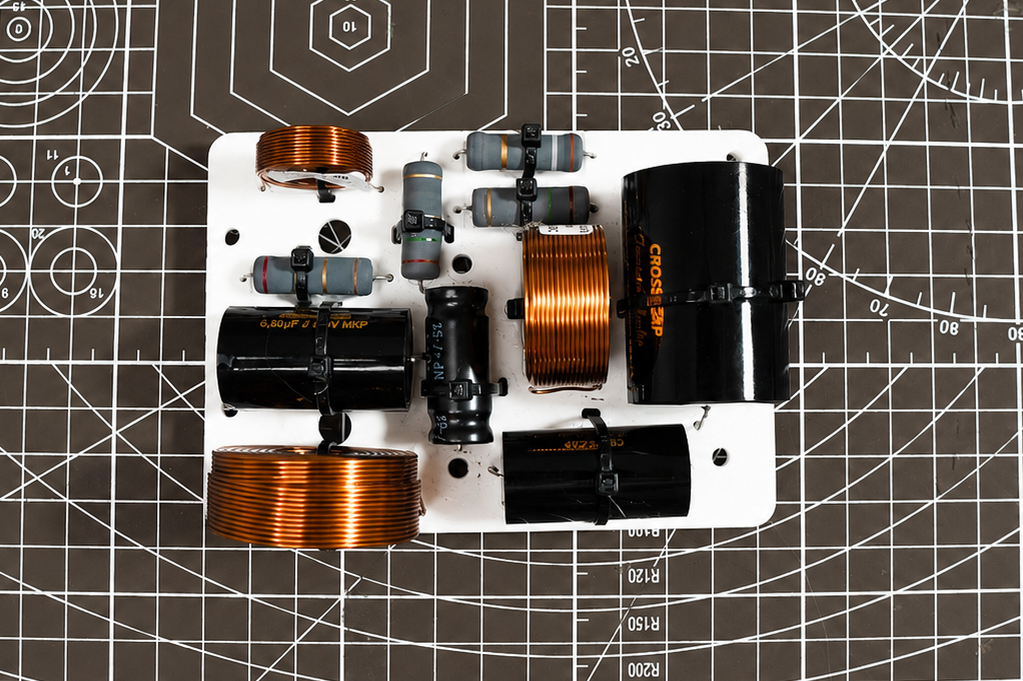

Passive crossover
Blends the woofer and tweeter for a coherent speaker.
4

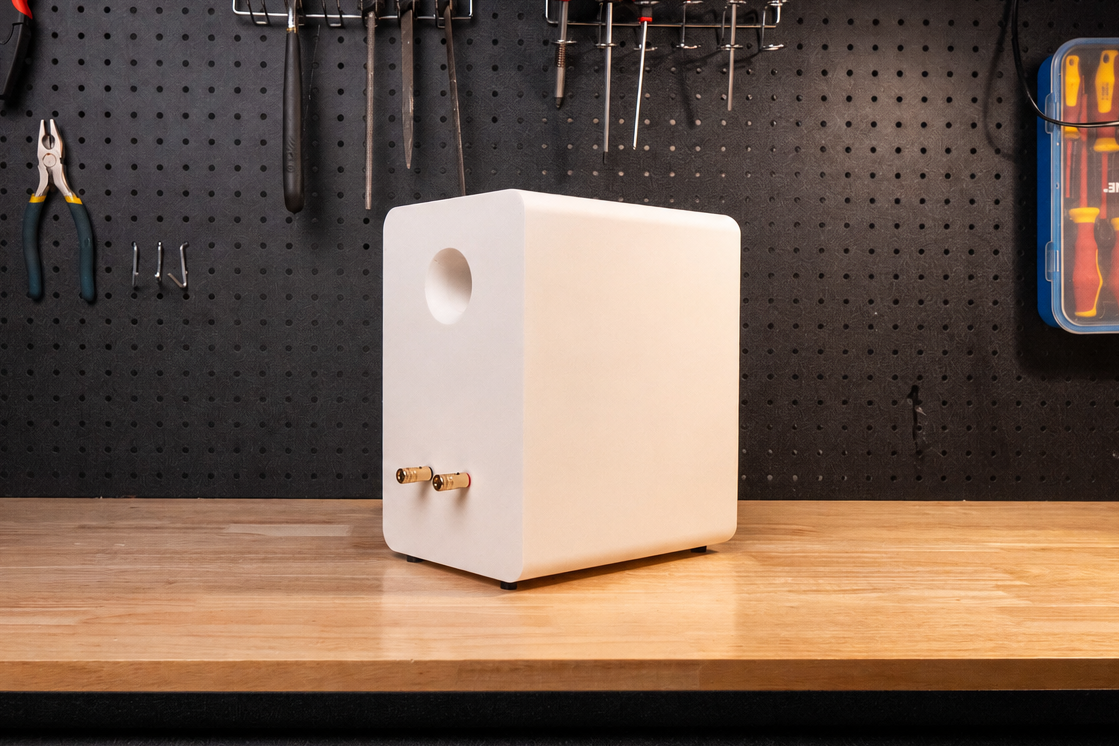

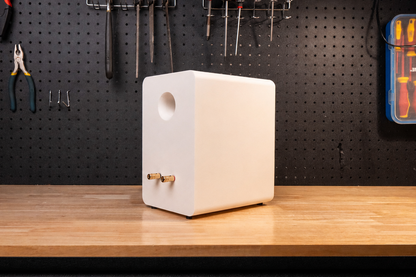

Ported cabinet
Adds low-end weight from a small enclosure.

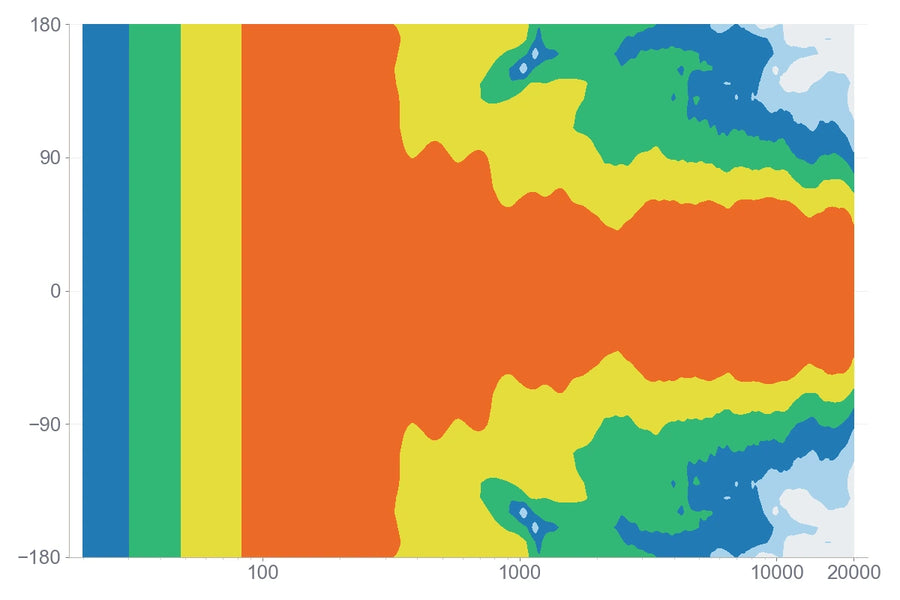

Measurements
Measured so you're not guessing

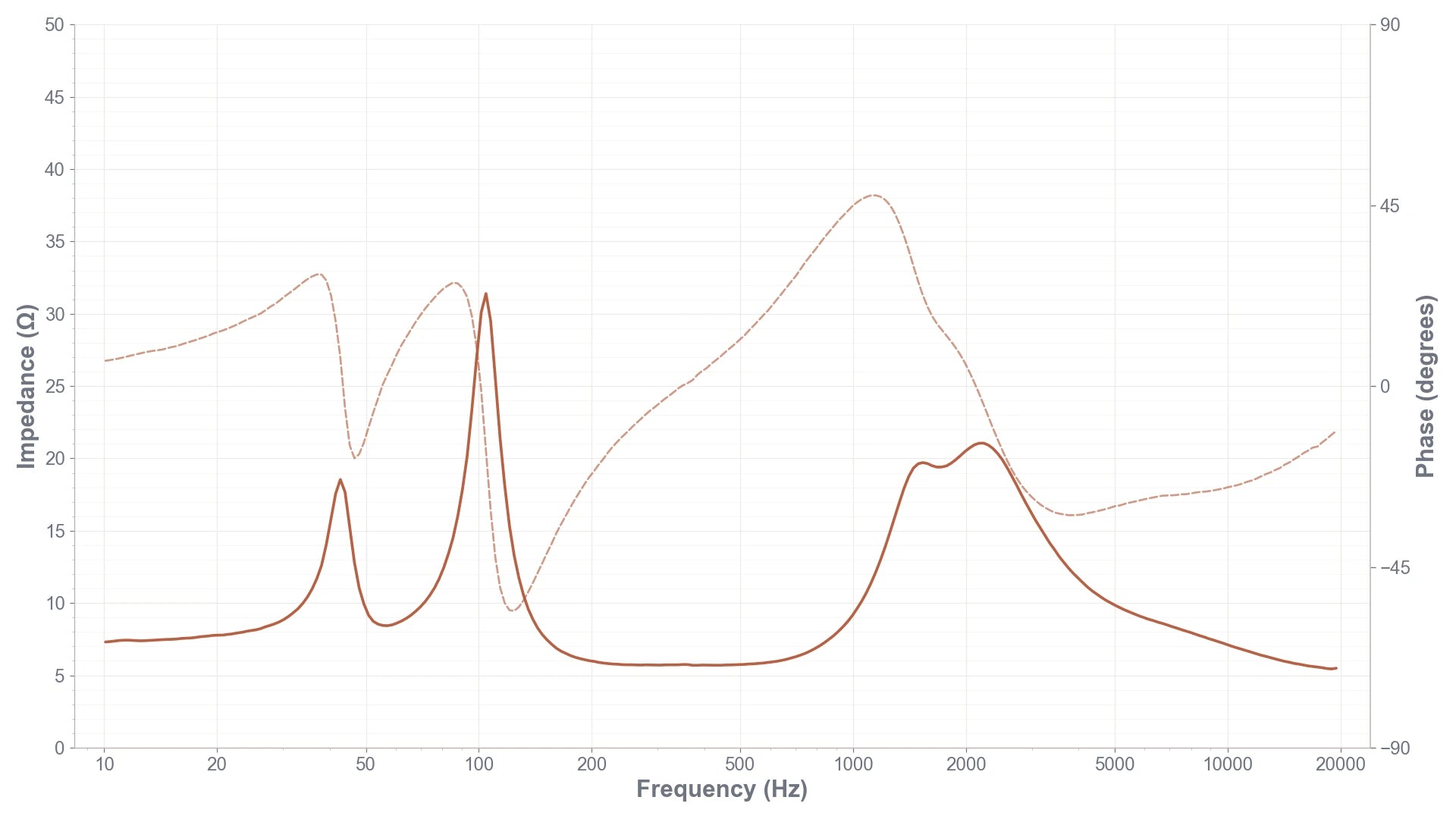

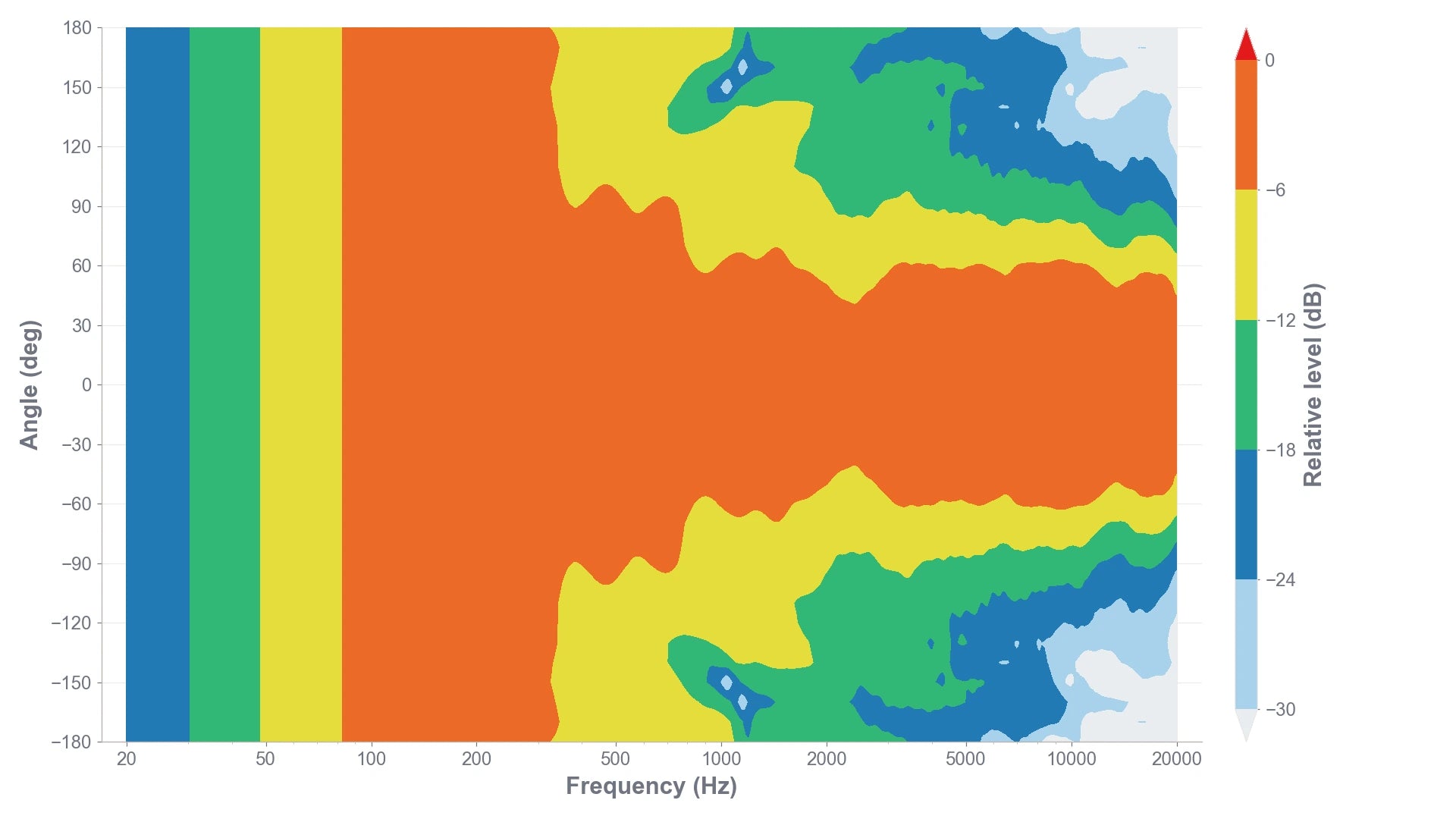

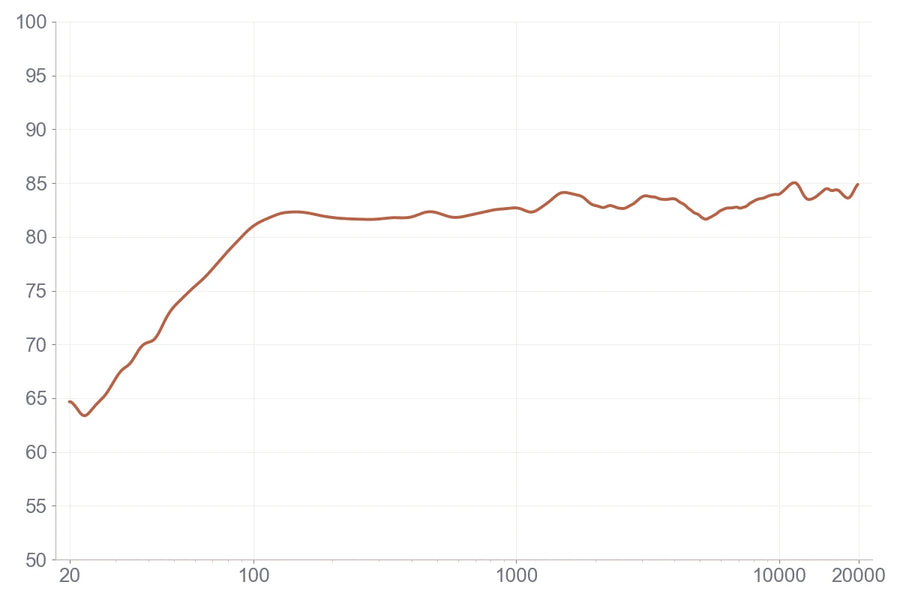

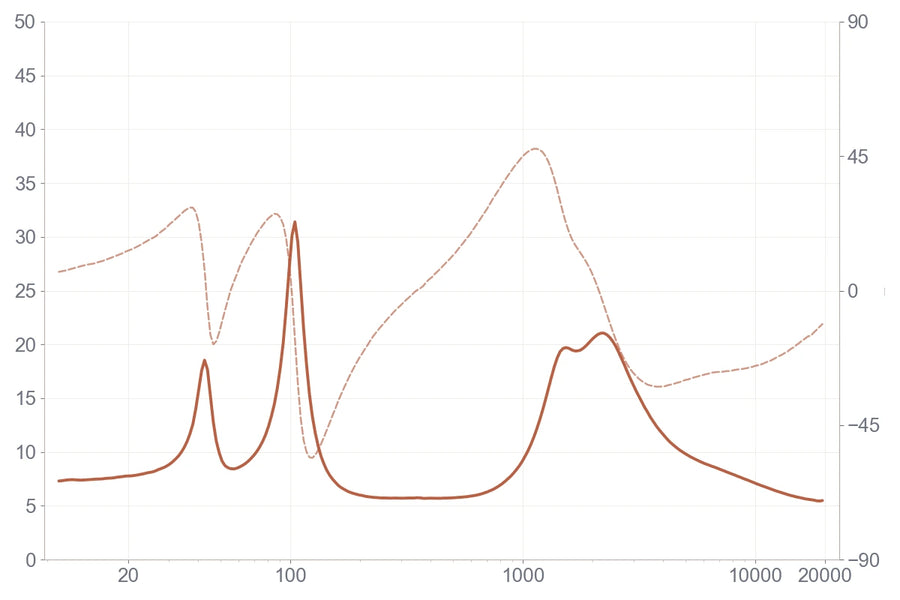

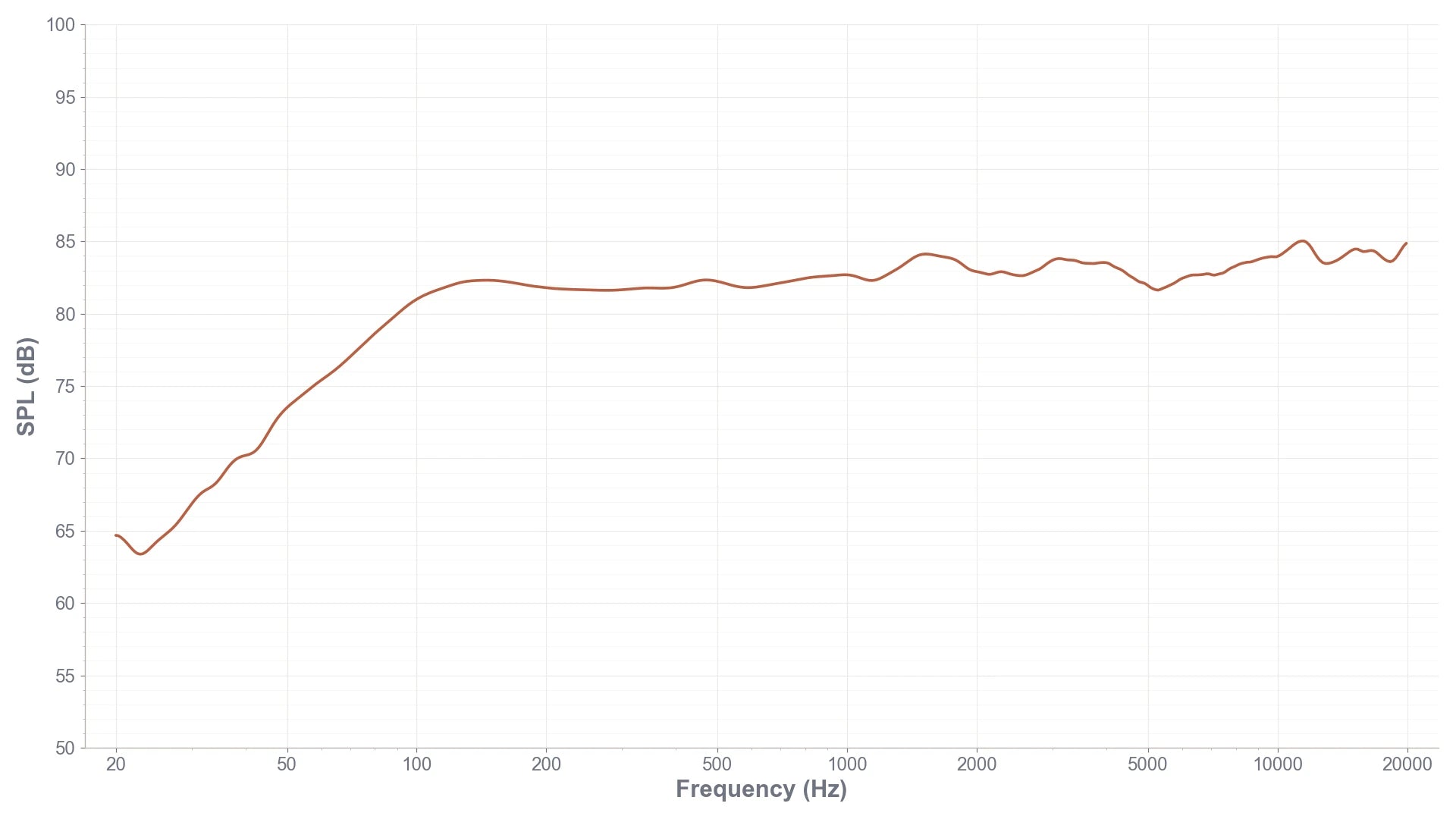

The response, impedance and directivity graphs show how the finished speaker behaves.
A compact speaker kit that measures properly, builds cleanly and works with normal hi-fi gear.
- Response checked
- Amp-friendly load
- Off-axis checked
For full measurement details, see the spec sheet. See the full spec sheet.
Specs
Technical specifications
The practical details: print size, materials, drivers, amplifier requirements and included files.
Key specs
- Type
- Passive 2-way bookshelf speaker pair
- Printer size
- W 160 x D 250 x H 210 mm
- Filament
- 1.9-2 kg PLA per speaker
- Print time
- 1-2 days per speaker
- Drivers
- 4-inch paper cone woofer + 19 mm dome tweeter
- Amplifier
- Normal stereo amplifier
- Impedance
- 8 ohms nominal
- Low-frequency extension
- 80 Hz (-3 dB), 50 Hz (-10 dB)
Cabinet and print details
- Enclosure

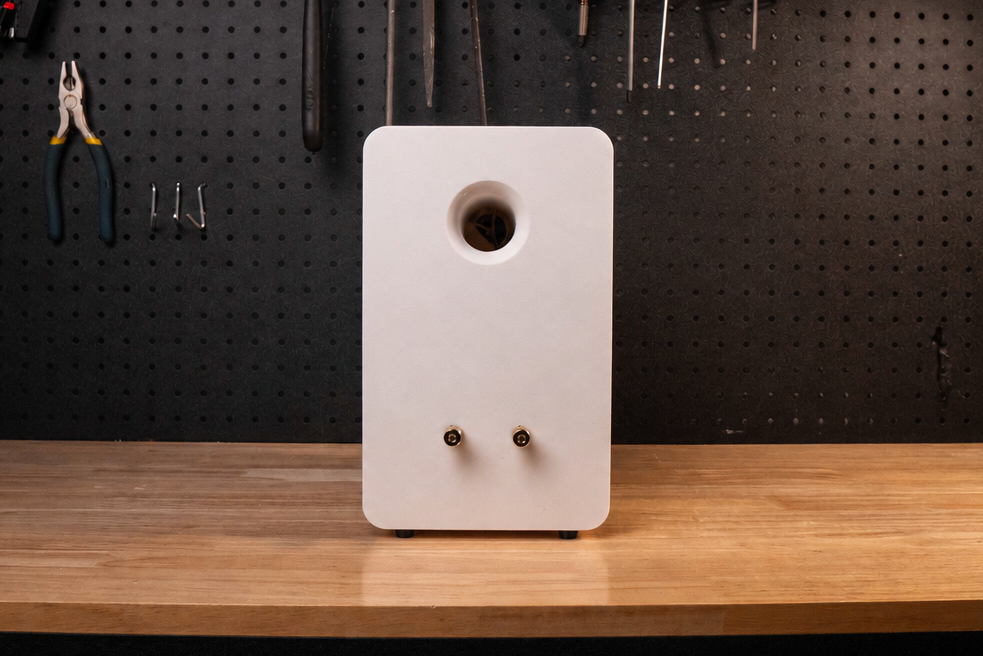

- Rear-ported bass reflex
- Print material
- PLA
- Printer size
- W 160 x D 250 x H 210 mm
- Dimensions
- 245 x 151 x 220 mm per speaker
- Finished speaker weight
- 3.5 kg per speaker
Drivers and amplifier
- Woofer
- 4-inch paper cone woofer
- Tweeter
- 19 mm dome tweeter
- Crossover
- Passive crossover parts included
- Impedance
- 8 ohms nominal
- Amplifier required
- Standard stereo amplifier or AV receiver, not included
Performance
- Sensitivity
- 82 dB 1W/1m
- Low-frequency extension
- 80 Hz (-3 dB), 50 Hz (-10 dB)
- Max SPL
- 101 dB @ 1 m, single speaker
- DSP required
- No
Files and support
- Printable files
- STL + STEP files
- Guides
- Build guide + setup guide
- Support
- Build help by email
Compare
Not sure which Emanate kit to choose?
Compare the small bookshelf, centre channel and larger bookshelf options.
| Model | Best for | Size | Bass | Difficulty |
|---|---|---|---|---|
| Emanate 4 This one | Desktops, bookshelves, small rooms, surrounds, or pairing with a subwoofer | Compact bookshelf pair | Useful on its own, better with a subwoofer | Beginner |
| Emanate 4C | Matching centre channel | Single compact centre channel | Intended to be used with a subwoofer | Beginner to intermediate |
| Emanate 6 | Larger rooms, fuller sound and main left/right speakers | Larger bookshelf pair | Deeper and fuller than Emanate 4 | Beginner |
Support
Help if you get stuck
If something is missing, damaged or unclear, email support is included.
- Missing or damaged kit parts are replaced.
- Build help is available by email.
- Setup questions are welcome.
- Custom design changes are not included.
The setup guide helps with placement after the build, so you are not guessing where to put them.
Questions
Before you start printing
Quick answers before you commit to the build.
Question Is this a good first speaker build?
Yes. It is designed for people who are comfortable with 3D printing and want a guided first speaker build.
Question Do I need to know how to solder?
You do need to solder, but prior experience is not required. The crossover and wiring are shown step by step.
Question Do I need a subwoofer?
No. Use them on their own for desktop, bookshelf and small-room listening. Add a subwoofer if you want deeper bass.
Question Do I need woodworking tools?
No. The cabinets are 3D printed and assembled with common tools.
Question What amplifier should I use?
Use a standard stereo amplifier or AV receiver with speaker-level outputs. The amplifier is not included.
Ready when you are
Ready to build the Emanate 4?
You can build this.
You’ve seen the fit check, the guides, the measurements and what is included. Start printing today and build a real pair of bookshelf speakers.
Start printing immediately with the included files. Your kit ships worldwide with support included.
