THE DIGITAL PLAN
The plans. Your printer. Your build.
Buy the digital design once, then source the components and build at your own pace.
What you get
3D-printable speaker files, build documentation and parts information for this design.
Your digital files are emailed after checkout.
What you supply
A suitable 3D printer, filament, tools and the physical components listed in the project guides.
The plan price does not include physical parts or an assembled speaker.
Project facts at a glance
Specifications from the published project guides. Finished cabinet dimensions differ from the printer volume needed for the individual parts. Keep the full guides handy for measurements, parts quantities and assembly details.
- Drivers
- 2 × Dayton RS180P-4 woofers; 1 × RS52AN-8 midrange; 1 × RST28F-4 tweeter
- Finished dimensions (H × D × W)
- 250 × 265 × 494 mm
- Minimum printer volume
- W 250 × D 250 × H 250 mm
- Nominal impedance
- 8 Ω
- Published frequency response (−3 dB)
- 61 Hz–20 kHz
- Amplification
- 20–180 W centre-channel amplifier output
- PLA filament
- ~5,500 g per centre speaker
- Assembly time
- 3 afternoons / centre speaker (excl. printing)
- Difficulty
- Hard
- Digital files
- STL print files, assembly guide, parts sourcing guide and spec sheet.
- Parts sourcing
- Buy the listed drivers, crossover components where required, hardware and materials separately. Physical parts are not included.
Explore the project
The speaker you’ll build, its requirements and the original project guides.
Heads-up: this is a big build with multi-day print times, so clear your queue and stock up on filament before you hit “Start”.

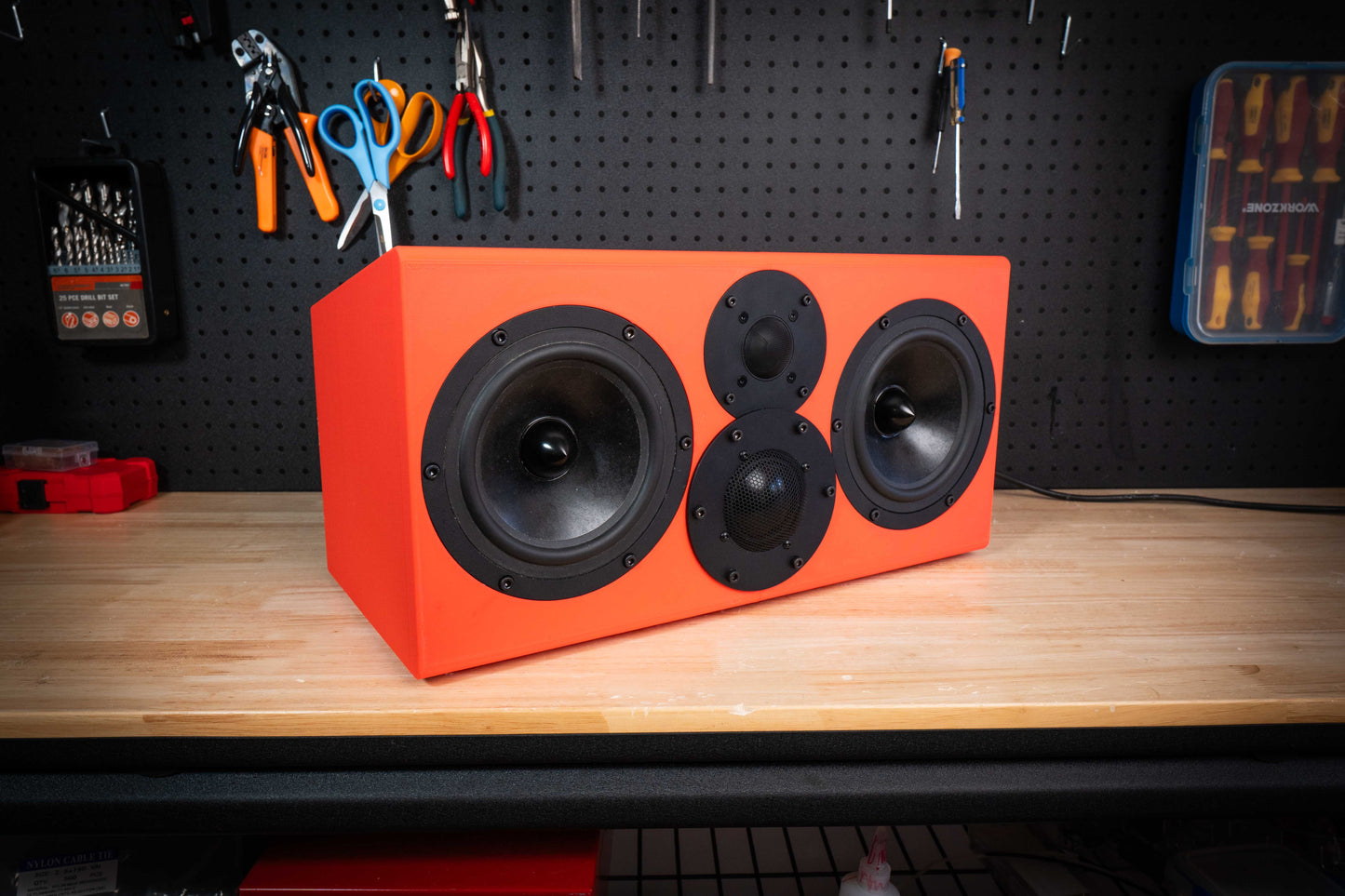

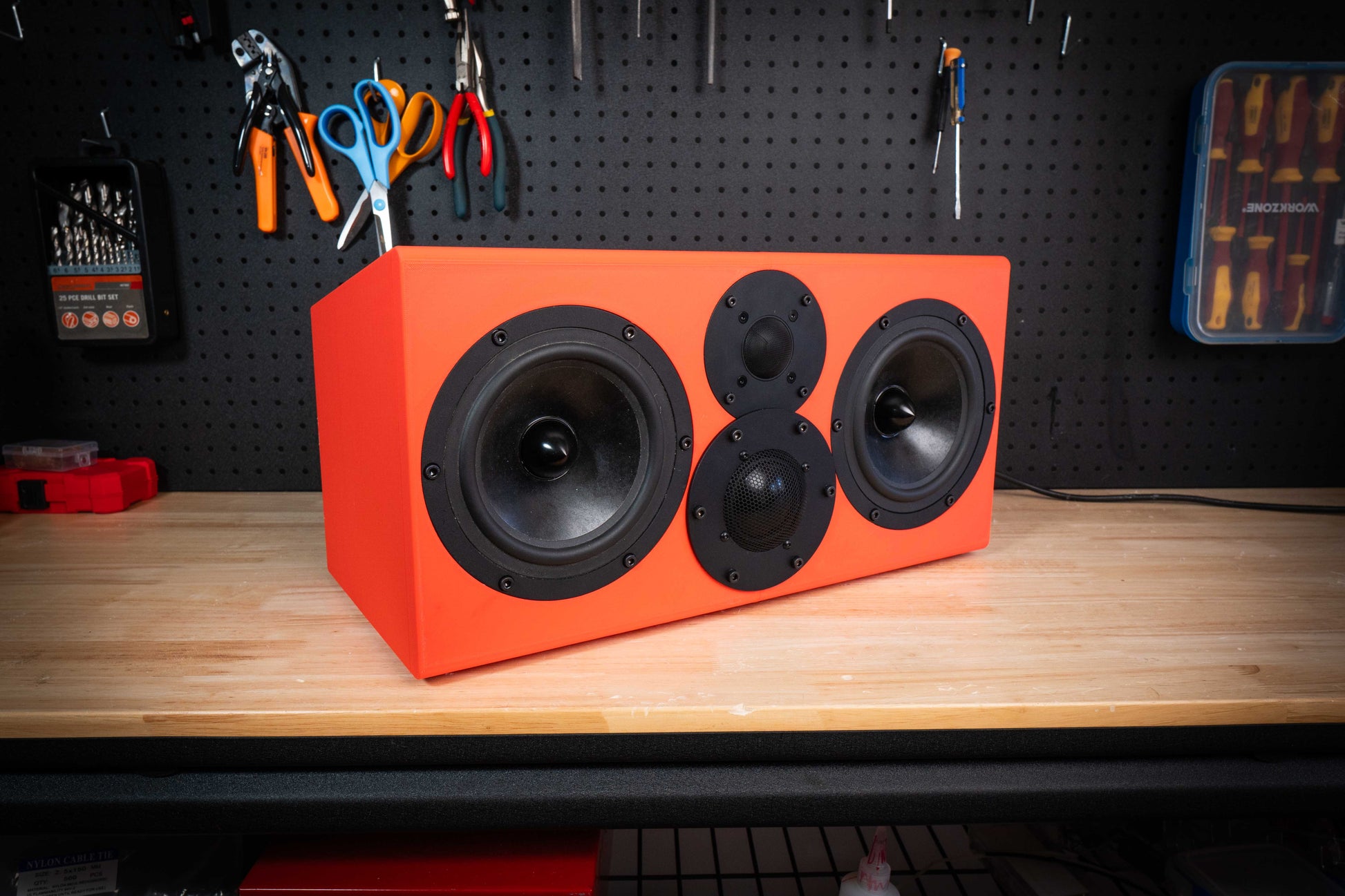

Build a center speaker that makes movie dialogue pop and explosions hit like thunder.
Designed to crown the front stage of any serious home theatre rig, the Illuminate 7c is a true three-way beast: silky highs, hyper-detailed mids and dual 7-inch woofers that dig deep—all wrapped in a 3D-printed cabinet you craft yourself.

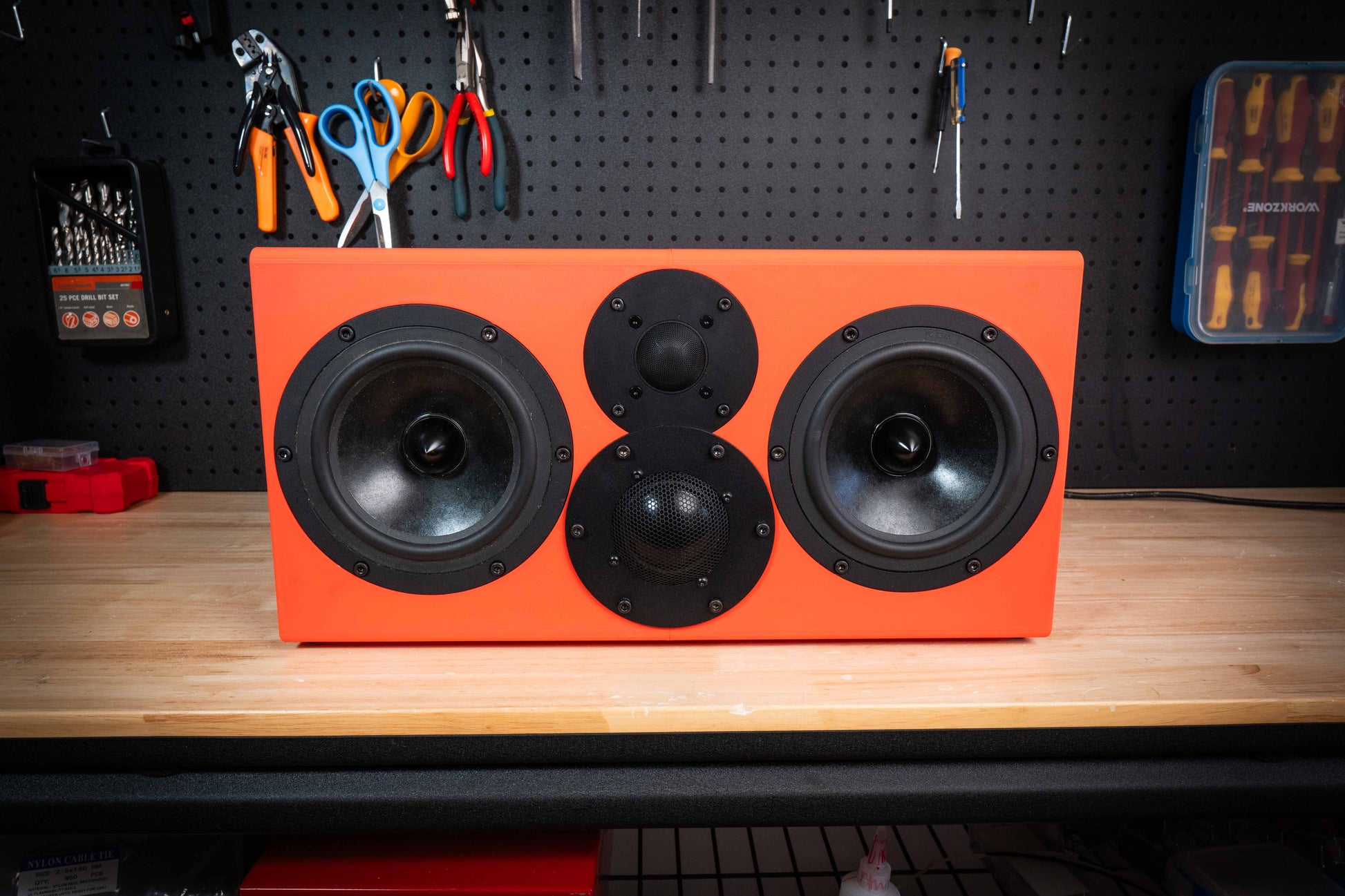

Great Sound
- 28 mm soft-dome tweeter for razor-sharp top end
- 52 mm fabric dome midrange that keeps voices lifelike and locked to the screen
- 7-inch low-distortion woofer delivering muscular, room-filling bass
Crossed over for seamless hand-offs, every driver plays in its sweet spot, so action scenes, whispered secrets and orchestral swells all land exactly as the mix engineer intended.

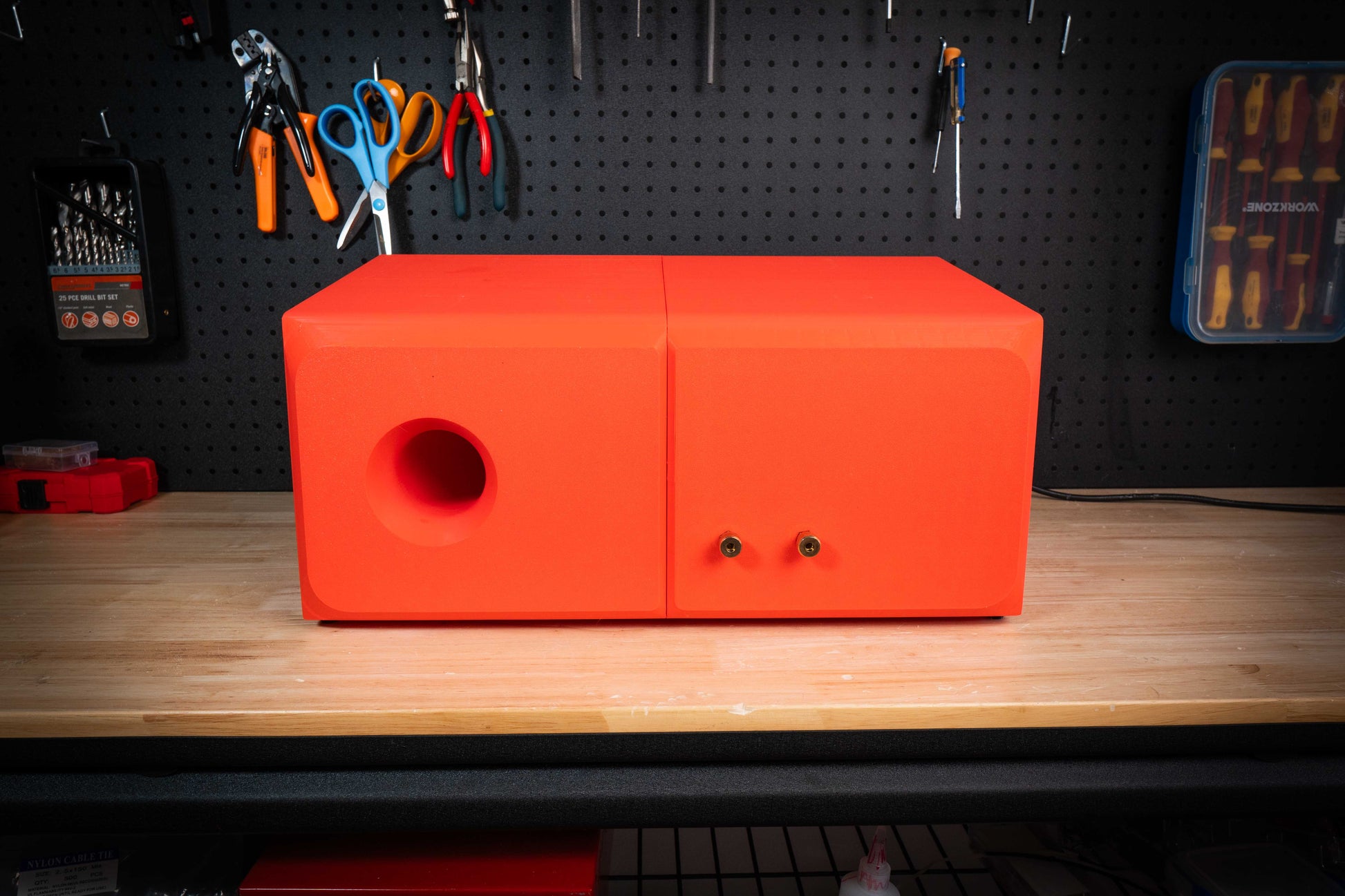

Large Format Center Channel

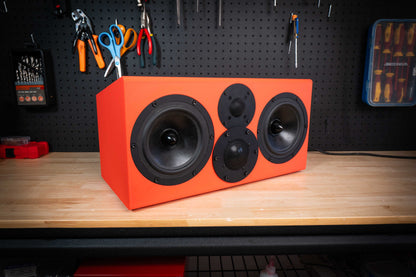

At 250 × 265 × 494 mm (H × D × W) the 7c is unapologetically substantial—big enough to go toe-to-toe with tower mains
Limitless Customisation
Choose from thousands of 3D printer filaments to design a speaker that’s uniquely yours. Whether it’s bold, subtle, or somewhere in between, the Illuminate 7c adapts to your style.
Exceptional Value
Experience sound quality that rivals premium off-the-shelf speakers at a fraction of the price. Build it yourself and own a speaker that truly stands apart.
Printable Crossover Board makes positioning components effortless.
Labels and guides help eliminate wiring mistakes.
Filament required per speaker: ~5500g
Minimum printer build volume: H250xD250xW250mm
A few things to know
How do I receive the plans?
Your digital files are emailed after checkout. Download the files and read the project guides before starting your build.
Are any physical parts included?
No. This is a digital plan. You source the components, filament and hardware separately, then print and assemble the speaker yourself.
Will this work with my printer and parts?
Check the printer build volume and component list for this specific project. Requirements vary between designs, so confirm that your printer fits the parts and that you can source the listed components before buying.
